Direct connection is the simplest way to connect bullstudio to your Redis instance. Use this method when your Redis is publicly accessible, such as managed Redis services from cloud providers.

​
Prerequisites

  • A Redis instance accessible over the internet
  • Redis hostname and port
  • Authentication credentials (if required)
  • TLS certificate (for secure connections)

​
Setting Up a Direct Connection

1

Navigate to Connections

Go to your workspace and click on Connections in the sidebar.
2

Add a new connection

Click Add Connection and select the Direct Redis tab.
3

Enter connection details

Fill in your Redis connection information:

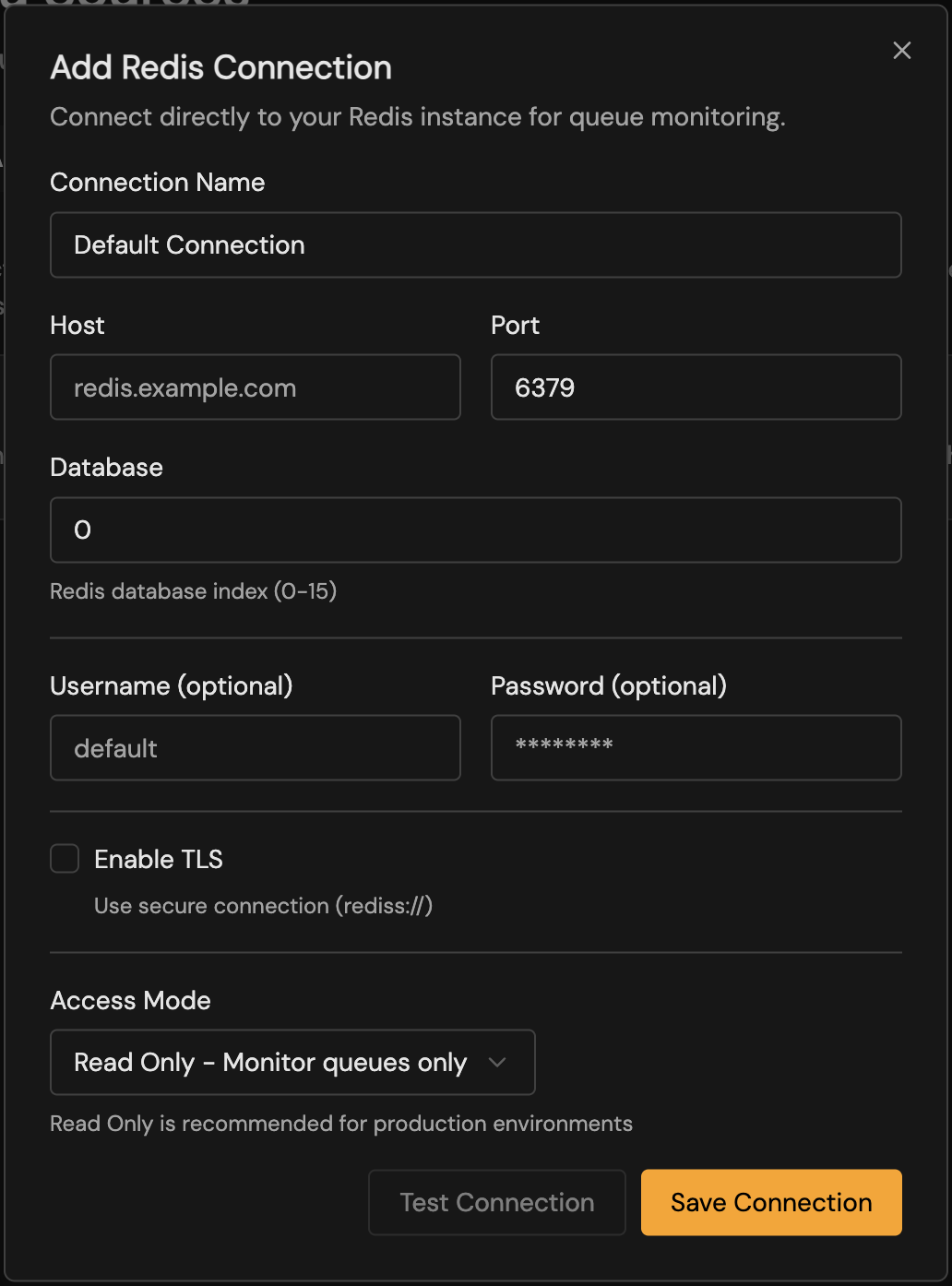

Add Redis connection dialog
FieldDescriptionRequired
NameA friendly name for this connectionYes
HostRedis hostname or IP addressYes
PortRedis port (default: 6379)Yes
DatabaseRedis database number (default: 0)No
UsernameRedis ACL username (Redis 6+)No
PasswordRedis passwordNo
TLSEnable TLS encryptionRecommended
4

Test the connection

Click Test Connection to verify bullstudio can reach your Redis instance.
5

Save

Click Save to create the connection. Your queues will appear automatically.

​
TLS Configuration

Always enable TLS when connecting to Redis over the public internet to encrypt data in transit.

​
Standard TLS

For most managed Redis services, simply enable the TLS toggle. bullstudio will use standard TLS verification.

​
Custom CA Certificate

If your Redis uses a self-signed or private CA certificate:
  1. Enable TLS
  2. Paste your CA certificate in PEM format in the TLS Certificate field
-----BEGIN CERTIFICATE-----
MIIDXTCCAkWgAwIBAgIJAJC1HiIAZAiUMA0Gcg...
-----END CERTIFICATE-----

​
Authentication

​
Password-Only (Redis 5 and earlier)

Enter your Redis password in the Password field. Leave Username empty.

​
ACL Authentication (Redis 6+)

Redis 6 introduced Access Control Lists (ACL) for fine-grained permissions:
  1. Enter the ACL Username
  2. Enter the corresponding Password
Create a dedicated Redis user for bullstudio with read-only permissions for enhanced security.

​
Example: Creating a Read-Only Redis User

ACL SETUSER bullstudio on >your-password ~* +@read +@connection +client +info +ping
This creates a user that can:
  • Read all keys (~*)
  • Execute read commands (+@read)
  • Manage connections (+@connection)
  • Run CLIENT, INFO, and PING commands

​
Access Modes

bullstudio supports two access modes:
ModeDescriptionCapabilities
Read-WriteFull access to queue operationsView jobs, retry failed jobs, remove jobs, pause/resume queues
Read-OnlyMonitoring onlyView jobs and metrics; no modifications allowed
Use Read-Only mode for production environments where you want to prevent accidental job modifications.

​
Cloud Provider Examples

  1. Enable In-Transit Encryption on your ElastiCache cluster
  2. Use the Primary Endpoint as the host
  3. Enable TLS in bullstudio
  4. Enter your AUTH token as the password
Host: your-cluster.xxxxxx.ng.0001.use1.cache.amazonaws.com
Port: 6379
TLS: Enabled
Password: your-auth-token

​
Troubleshooting

Causes:
  • Redis is not publicly accessible
  • Firewall blocking the connection
  • Incorrect hostname or port
Solutions:
  • Verify your Redis instance allows external connections
  • Check security group / firewall rules allow inbound traffic on the Redis port
  • Confirm the hostname and port are correct
  • Ensure your Redis instance is publicly accessible
Causes:
  • Incorrect password
  • Wrong username (for ACL auth)
  • User doesn’t have required permissions
Solutions:
  • Double-check your password
  • For Redis 6+, ensure you’re using the correct username
  • Verify the user has at least read permissions
Causes:
  • TLS not enabled on Redis
  • Certificate verification failed
  • Wrong port (TLS vs non-TLS)
Solutions:
  • Confirm TLS is enabled on your Redis instance
  • Some providers use different ports for TLS (e.g., 6380)
  • If using a self-signed certificate, add it to the TLS Certificate field
Causes:
  • Connected to wrong Redis database
  • No BullMQ queues exist yet
  • Queues use a custom prefix
Solutions:
  • Verify the database number (0-15)
  • Confirm your application has created queues
  • Check if your queues use a non-default prefix

​
